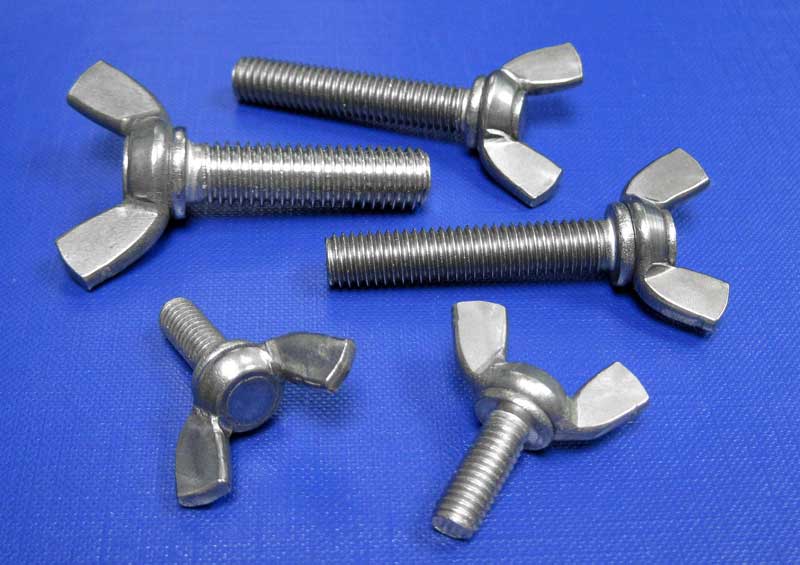

Wing Screws American Form M3 up to M12 Din316


Wing Screw American Form

Diameters M3 to M12

Lengths from 10mm to 60mm

Corrosion Resistant Fastenings in stainless steel Wing Screw American Form M3-M12 Our company is a specialist supplier of Industrial Fasteners in Stainless Steel and many other Corrosion Resistant Materials.

Sizes Available
m 2.4 2.9 4.1 5.1 5.6 6.8 9
h 7.2 8.6 11 13.6 14.8 17.7 24.1
g 1.2 1.6 2.1 2.5 2.8 3.3 4.5
e 15.3 17.6 22.5 27.8 30.3 36.2 49.9
s 4.5 5.2 6.7 8.4 9.1 11 15
d1 6.8 8 10.3 12.7 13.8 16.5 22.5

d M3 M4 M5 M6 M8 M10 M12

L (mm)
10 Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners
12 Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners
16 Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners
20 Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners
25 Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners
30 Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners
35   Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners
40   Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners
45     Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners
50     Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners
55         Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners
60         Avon Stainless Fasteners Avon Stainless Fasteners Avon Stainless Fasteners

Box Qty 100 100 50 50 50 25 25
Material A2 and A4

To find out more about how fasteners are measured please
click here..


  • Length: 10mm to 60mm
  • Diameter: M3 to M12
  • Model: Din 316
