Hexagon Dome Nut High Type M3 up to M30 Din1587


Hex Dome Nut High Type

M3 up to M30

Hex Dome Nut High Type

Sizes Available

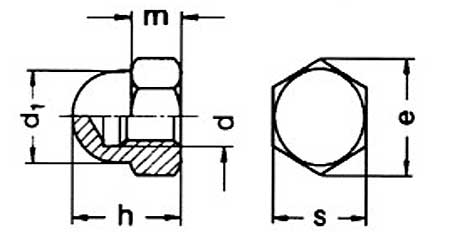

d s e d1 max m max h A2/A4 Boxed

M3 5.5 6.01 5.5 2.4 6 Avon Stainless Fasteners 500
M4 7 7.66 6.5 3.2 8 Avon Stainless Fasteners 500
M5 8 8.79 7.5 4 10 Avon Stainless Fasteners 500
M6 10 11.05 9.5 5 12 Avon Stainless Fasteners 500
M8 13 14.38 12.5 6.5 15 Avon Stainless Fasteners 100
M10 17 17.77 16 8 18 Avon Stainless Fasteners 100
M12 19 20.03 18 10 22 Avon Stainless Fasteners 50
M14 22 23.36 21 11 25 Avon Stainless Fasteners 50
M16 24 26.75 23 13 28 Avon Stainless Fasteners 25
M18 27 30.14 26 15 32 Avon Stainless Fasteners 25
M20 30 33.53 28 16 34 Avon Stainless Fasteners 25
M22 32 37.29 33 18 39 Avon Stainless Fasteners 25
M24 36 39.98 34 19 42 Avon Stainless Fasteners 25
M27 41 47.3 40 20 47 Avon Stainless Fasteners 10
M30 46 52 42 24 52 Avon Stainless Fasteners 10

To find out more about how fasteners are measured please
click here..


  • Diameter: M3 to M30
  • Model: Din 1587
