R Clips Single


R Clips Single

N.B: Wire formed items can vary slightly dependant on manufacturer. Dimensions for guidance only.

Await receipt of goods before drilling holes etc.

All dimensions in mm.

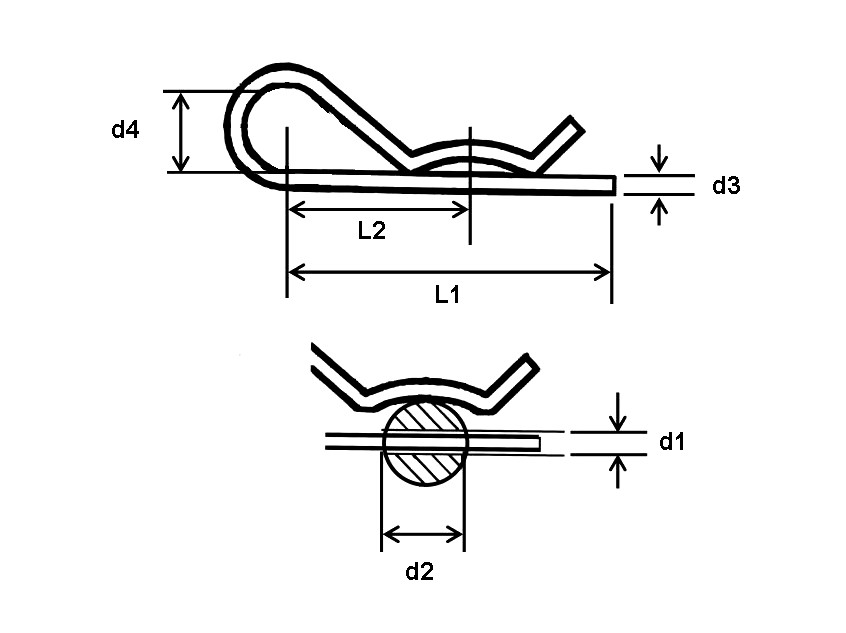

Sizes Available
d1 d2 d3 d4 L1 L2 Boxed
1.5 5 - 7 1.2 3.5 17 12 100
1.7 9 - 11 1.4 7.5 28 12 100
2.3 9 - 11 2.0 10.0 35 16 100
2.8 9 - 11 2.5 10.5 35 16 100
2.1 11 - 14 1.8 11.5 35 16 100
3.3 14 - 18 3.0 13.5 42 21 100
2.9 18 - 21 2.6 14.5 50 22 100
3.6 21 -23 3.3 18.5 55 25 100
3.8 14 - 16 3.5 15.5 54 25 100
4.3 14 - 18 4.0 19.0 60 30 100
5.3 21 - 23 5.0 26.0 84 40 50
4 23 - 26 3.7 23.5 65 30 50
6.5 24 - 30 6.0 30.0 90 50 25

To find out more about how fasteners are measured please
click here..


  • Length: 17mm to 90mm
  • Diameter: 1.2mm to 6mm
  • Model: R Clip Single
